Geology Word of the Week: F is for Float

A cairn built out of float rocks in Wyoming, Summer 2011.

def. Float:
Loose pieces of rock that are not connected to an outcrop.

If you’re in the field with a geologist, you’re very likely to hear the word “outcrop” and the phrase “in situ“. When describing, identifying, mapping, and understanding rocks, geologists like to see rocks in context. If rocks were alive, you might say that geologists like to observe rocks in their natural habitats. You might say that geologists like to observe where rocks live and who their neighbors are and how they interact with their neighbors. Of course, rocks aren’t alive, but geologists still find it very useful to observe rocks in situ, a Latin phrase that literally means “in position.” When rock is observed in situ, that means that it is attached to an outcrop, which is a place where bedrock or other “in position” rock is exposed at the Earth’s surface. Sometimes, outcrops are natural– they are places where weathering, erosion, faulting, and other natural processes have exposed hard rock above softer soil, sediment, alluvium, and colluvium. Often, outcrops are manmade. Geologist are found of observing rocks exposed at manmade outcrops such as roadcuts and quarry walls. Observing rocks in situ at outcrops allows geologists to gather much more information about the rocks than can be gleaned from a fragment of rock alone. By observing rocks in context, geologists can gather much information about the structure, stratigraphic position, size, degree of weathering, and many other aspects of a particular body of rock. Observing rocks in situ at an outcrop is particularly important for geological mapping. Only rocks observed at an outcrop can be confidently delineated on a geologic map.

Taking a closer look at some float rocks in Wyoming, Summer 2011.

When geologists encounter pieces of rock that are not found in situ at an outcrop, they refer to these rocks as “floats.” Floats are pieces of rock that have been removed and transported from their original outcrop. Sometimes, float rocks are found very close to outcrops. For example, weathering and erosion may create a pile of float rocks at the bottom of a hill below an outcrop. Often, geologists will first notice float rocks and then will look around– and often find– the outcrop from which the float rocks originated. Of course, geologists can never be 100% sure that a float rock originated from a particular outcrop, but they can be pretty certain if there is a similar rock in outcrop nearby the float. Other times, float rocks are found very far from their original outcrops. Water, ice, and even wind can transport rocks very far from their original outcrops. A well-known type of float rock is a glacial erratic, a rock which has been scraped up and transported by a glacier.

Float rocks downhill of an outcrop in the Cape Fold Belt, South Africa, July 2012.
Taking a closer look at float rocks in the Cape Fold Belt, South Africa, July 2012.

Float rocks can even be transported by anthropogenic activities. Many rocks are quarried and used for buildings, walls, roads, bridges, and other construction projects. Anthropogenic activities can move rocks far from their original outcrops. For example, in rural New Hampshire where I grew up many of the roads are gravel roads. The gravel that covers the roads is quarried and brought in by truck. I like to walk along the gravel roads near my parents’ house in New Hampshire and pick up interesting pieces of gravel. Sometimes, the gravel pieces contain spectacular garnets, micas, and other pretty minerals. I often find myself wondering about the geology of these gravel rocks. I can understand some things about the geology of these gravel float rocks, but to really understand these rocks I’d need to track down the quarry locations and go look at an outcrop or two.

My good friend Dana Hunter examining a pile of gravel float rocks along a gravel road in New Hampshire, May 2012.

Often, geologists are brought float rocks to identify. Curious non-geologists often pick up loose pieces of rock and bring them to geologists for identification. Commonly, people pick up dark-colored rocks and wonder if they are meteorites (most often, they’re not). Whenever I am brought a float rock (or am sent pictures of a float rock), one of the first questions I ask is, “Where did you find the rock?” I also often ask, “Were there any outcrops of the rock nearby? I mean, places where the rock was still attached to the Earth?” Often, the reply to these questions is, “No, I just picked up the rock. I don’t really remember where– somewhere in such and such place.” I do my best to identify float rocks when I can, but the truth is that there is only so much information that a geologist can gain from a float rock. Don’t get me wrong– geologists can still learn a great amount from float rocks. Nevertheless, geologists prefer to observe rocks in their natural habitats.

Geology Word of the Week: E is for Eurypterid

Eurypterid fossils on display in the Denver Museum of Science and Nature. Picture courtesy of Tony Martin.

def. Eurypterid:
1. A group of extinct arthropods that were fearsome marine predators of the Paleozoic. There were over 200 different species of eurypterid, and they ranged from very small (less than 20 cm) to very large (greater than 8 feet). Because of their long tail, eurypterids are sometimes called “sea scorpions.” Indeed, they are closely related to today’s scorpions and other arachnids. One species of eurypterid, Eurypterus remipes, is the state fossil of New York.
2. A really, really cool fossil that I one day hope to add to my rock collection.

You can find out much more about eurypterids on wikipedia and Google. You can also buy your very own plush eurypterid here.

A cuddly eurypterid. I hope someone gives me one for Christmas! Picture from: http://www.museumoftheearth.org/store/storeitemdetails.php?pubID=5743.



***Thanks to Liz Johnson for suggesting this week’s word, inspired by my own What to Buy a Geologist for Christmas: 2012 Edition post. Thanks also to Tony Martin for providing the wonderful picture of eurypterid fossils.***

Geology Word of the Week: D is for Drumlin

Geologist Liz Johnson in front of drumlins in Clew Bay, Ireland. Picture courtesy of Liz Johnson.

def. Drumlin:
An elongated hill or ridge with a shape resembling an upside-down spoon or a half-buried egg that was formed out of glacial till– and sometimes other material such as gravel and even bedrock– that was shaped by the movement of a glacier. A drumlin carved in bedrock is usually called a “rock drumlin.” Drumlins have a steeper end and a less-steep, more tapered end. The shape of a drumlin gives an indication of ice flow in the glacier or ice sheet that formed it. The steeper end of a drumlin was formed upstream and the more tapered end was formed downstream in the ice flow. Drumlins, like many features carved by glaciers, generally appear in groups. So, it is not uncommon to find fields of drumlins.

Another view of the drumlins in Clew Bay, Ireland. Picture courtesy of Liz Johnson.
A drumlin at Drumlins Golf Course in Syracuse, New York. Picture courtesy of Tannis McCartney.
Drumlin field south of Lake Ontario (the large bay in the upper left that is not colored blue is Irondequoit Bay near Rochester, NY). Map made in GeoMapApp and courtesy of Tannis McCartney.

If anyone else has good drumlin pictures, please send them to me, and I’ll add them to this post. My fellow AGU blogger Callan Bentley also has a couple of posts about drumlins:

Drumlin Land
Litter of Drumlins


***Thanks to my friend Joy for suggesting this week’s word and to Liz Johnson and Tannis McCartney for providing pictures.***

Geology Word of the Week: C is for Columnar Jointing

Basalt columns at Devil's Postpile, California. Picture courtesy of Cian Dawson.

def. Columnar Jointing:
A structure that forms in rocks (most commonly in basalt) that consists of columns (mostly commonly hexagonal in shape) that are separated by joints or fractures in the rock that formed when the rock contracted, most often during cooling.

Columnar jointing is always a joy to observe in rocks in the field. Stumbling upon perfectly geometric columns of rock can only be described as magical. Even the most austere scientist might find herself (or himself) gaping in awe at the flawless shapes and wondering if men or Gods carved those immaculate columns. However, that majestic columnar jointing can easily be explained with a little bit of physics.

A geologist ponders columnar jointing at Mt. Ruapehu, central North Island, New Zealand. Picture courtesy of Shaun Eaves.

Most commonly, columnar jointing is observed in basalt. Let me try to explain how columnar jointing forms in basalt.The diagram below will be helpful for the explanation.

A diagram explaining how columnar jointing forms in a cooling body of rock. Diagram from Dr. Malcolm Reeves's website at the Univerisity of Saskatchewan. Diagram taken from here: http://homepage.usask.ca/~mjr347/prog/geoe118/geoe118.054.html

Basalt is an igneous, volcanic rock. For those of you who need a little Geology 101 refresher, “igneous” means that the rock formed from a melt and “volcanic” means that the melt erupted at the Earth’s surface as lava before it cooled to form the rock. After lava is erupted onto Earth’s surface, it cools. However, lava may take awhile to cool, and as it cools there may be a temperature gradient. Most commonly, the top of the lava flow will be cooler than the bottom of the lava flow.

When the lava cools, it contracts. This is because hot things generally take up more space than cool things. Think about hot steam, for instance. When you open the lid of a simmering pot or a tea kettle, that hot steam wants to escape and expand into the air. Or think about those balloons from your last birthday celebration. Have you ever notice how balloons tend to droop overnight? Partly, that may be because the helium in the balloons is escaping, but it’s also often because the gas inside the balloons cools down and contracts with the cooler nighttime temperatures. Sometimes, if you prop those drooping birthday balloons in the sun the next morning, they’ll pop back up again as the gas inside them warms up and expands.

When objects contract, they often crack or fracture. When contraction occurs at centers which are equally spaced (see the above diagram), then a hexagonal fracture pattern will develop. If the contraction is not evenly spaced, then other geometries of fractures, such as 5-sided or 7-sided fractures, may occur. Contraction may not be equally spaced if, for example, the thickness or composition of the lava flow varies. The fracture pattern that forms at the cooling surface will tend to be propagated down the lava as it cools, forming long, geometric columns. Thus, as lava cools to form basalt, it may crack in a hexagonal (or other) shape and form columns. These columns form in a variety of sizes– some are fairly small, and some are wider and much taller than people!

Hexagonal joints at the top of Devil's Postpile, California. Picture courtesy of Cian Dawson.

Water can play a role in the formation of columnar jointing in lava flows. As explained by Dougal Jerram (aka “Dr. Volcano”) in his book Introducing Volcanology,

The formation of columns is particularly enhanced by water… Where water cooling has played a significant role, often when lava flows are ‘ponded’  in river valleys and are cooled by river water flowing over them, a predominantly two-tiered set of columns can develop, known as entablature and colonnade. The colonnade columns rise straight up from the basal cooling… whereas the ingress of water in the upper parts of the flow sets up a variety of different angles of cooling fronts. This leads to an irregular and sometimes hackly jointing called entablature in the upper parts of the flow.

Here’s a picture of some entablature (upper) and colonnade (lower) columnar jointing structures in basalts in Iceland:

Colonnade and entablature columnar jointing structures in Iceland. Picture courtesy of Dougal Jerram.

Columnar jointing isn’t restricted to basalts, however. This structure can also form in other types of rocks which undergo cooling and contraction. For example, here is some columnar jointing in the Bishop Tuff of the Long Valley Caldera in California:

Columnar jointing in the Bishop Tuff. Picture courtesy of Erik Klemetti.

I’d like to end this post with a question from me for the geoblogosphere: are there any other conditions (other than cooling of igneous rocks) that lead to the formation of columnar jointing in rocks? Could, perhaps, contraction related to the drying out of a sedimentary rock lead to columnar jointing? I know that mudcracks, for instance, are often hexagonal in shape. Put your brains to work and leave a comment below.



***Thanks to Cian Dawson, Shaun Eaves, Dougal Jerram, and many, many others for providing pictures of columnar jointing. I didn’t have time or space to share all of your pictures in this post, but stay tuned for an upcoming “Columnar Jointing in Pictures” post in which I’ll share a few more pictures. Meanwhile, you can enjoy this amazing collection of columnar jointing Gigapans compiled by Ron Schott.***

A Second Geologist’s Alphabet

I’m already at the letter B of my third geologist’s alphabet, so I thought I should compile a list of my second geologist’s alphabet. During the last year of my PhD, my weekly words were not so weekly. Thus, I blogged my second geologist’s alphabet over the last year and a half or so. My first geologist’s alphabet can be found here.

Here’s my second geologist’s alphabet:

A is for Accretionary Wedge
B is for Brunton
C is for Coquina
D is for Delta
E is for Eclogite
F is for Fumarole
G is for Glomeroporphyritic
H is for Halokinesis
I is for Inselberg
J is for Jimthompsonite
K is for Krakatau
L is for Lepidolite
N is for Nummulite
O is for Ooid
P is for Pleochroism
Q is for Quarry
R is for Rutile
S is for Syncline
T is for Time
U is for Ulexite
V is for Vitreous
W is for Widmanstätten Pattern
X is for Xiphactinus
Y is for Yellowstone National Park
Z is for Zeolite

Geology Word of the Week: B is for Botryoidal

A bunch of grapes which I purchased earlier today at the Woolworth's grocery store across the street.

def. Botryoidal:
Shaped like a bunch of grapes.

The word botryoidal comes from the Greek word “botrus”, which literally means a cluster or bunch of grapes. In geology the word botryoidal is often used to describe a rock texture or mineral habit (appearance).

Here are a few pictures of some botyroidal rocks and minerals:

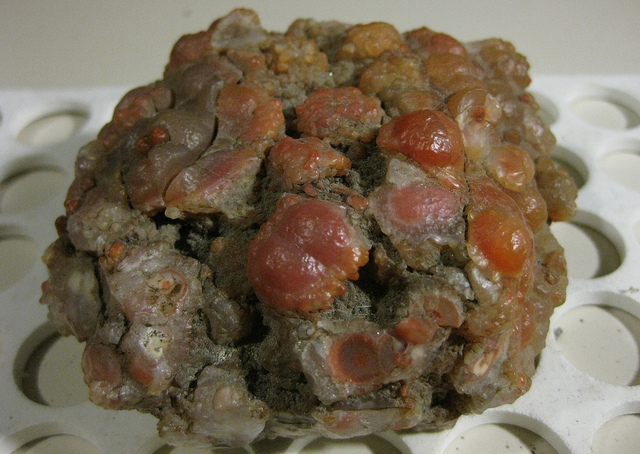

Botryoidal chalcedony. Picture courtesy of Patrick Donohue.
Botryoidal arsenic. Picture courtesy of Patrick Donohue.

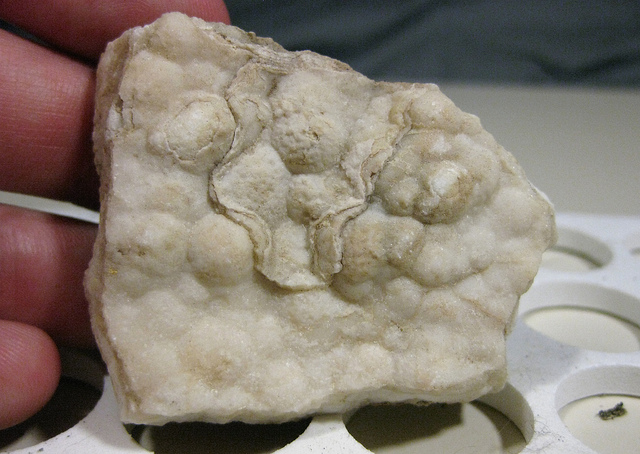

Botryoidal carbonate. Picture courtesy of Patrick Donohue.

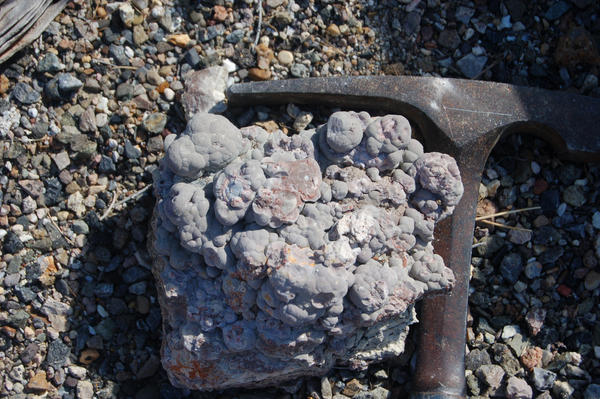

Botryoidal vapor-phase altered rhyolite. Picture courtesy of Lockwood DeWitt.

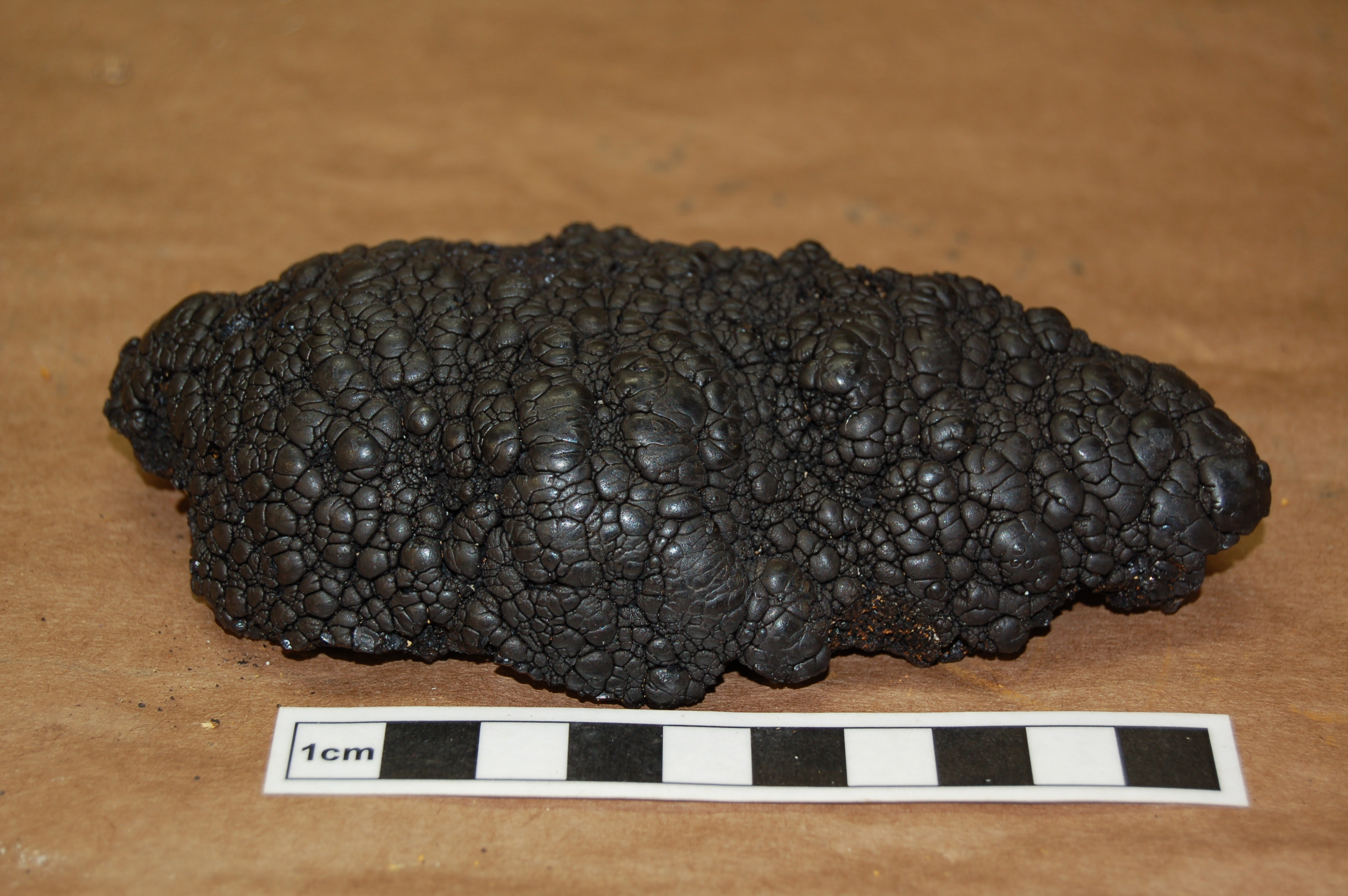

Botryoidal ferromanganese crust dredged from the Ninetyeast Ridge, Indian Ocean, Summer 2007.
More botryoidal ferromanganese crust dredged from the Ninetyeast Ridge, Indian Ocean, Summer 2007.

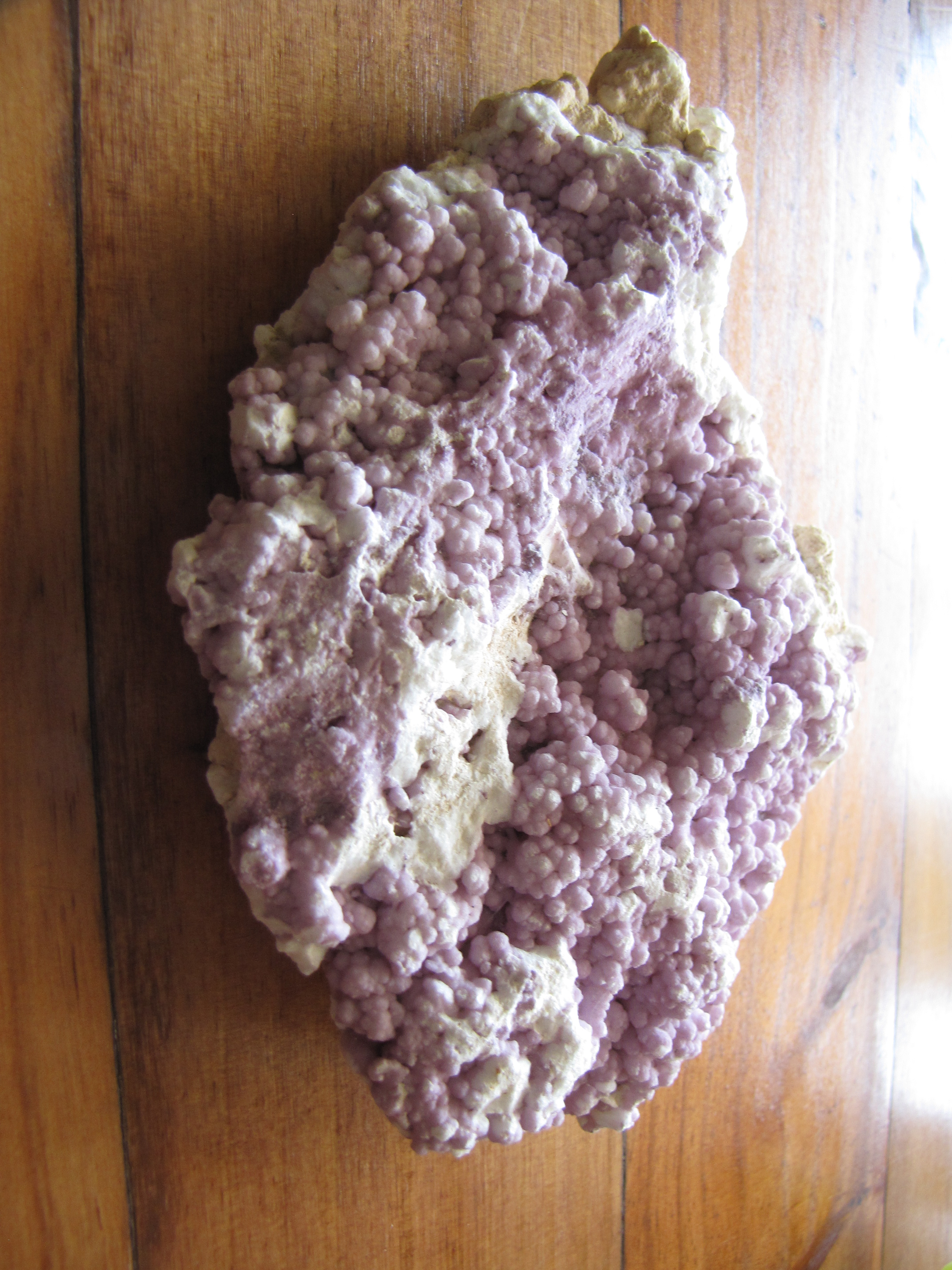

Botryoidal (and purple!) carbonate from the Samail Ophiolite, Sultanate of Oman.
A geologist, a botrus, and a botryoidal rock.

***Thanks to Patrick Donohue for suggesting this week’s word and to Patrick and Lockwood DeWitt for providing pictures.***

Geology Word of the Week: A is for Amygdale

Amygdaloidal basalt collected during dredging along the Ninetyeast Ridge in the Indian Ocean in summer 2007.

def. Amygdale (also spelled Amygule):
Vesicles, generally in extrusive igneous rocks, that are filled with secondary minerals, most commonly quartz, calcite, chlorite, and zeolite.

When a rock contains amygdales, geologists often describe it as an amygdaloidal rock. For example, basalt is often described as amygdaloidal basalt.

Here are a few previous, related geology words of the week that may be of interest:

V is for Vesicle (and Vug)

Z is for Zeolite

M is for Magma

And here are a couple more pictures of amygdaloidal rocks:

Amygdaloidal basalt from the Isle of Skye, Scotland. Picture courtesy of Matt Kuchtam.
A zeolite amygdale in a rock collected from Quartzville, Oregon. Picture courtesy of Dana Hunter.



***Thanks to my twitter follower Laura Hamilton for suggesting this week’s word. Thanks to Matt Kuchtam, Dana Hunter, and Lockwood De Witt for providing pictures.***

Geology Word of the Week: Z is for Zeolite

Natrolite, a mineral belonging to the zeolite group. Mary's Peak, Oregon. Picture courtesy of Dana Hunter.

def. zeolite:
The name of a large group of porous, framework, aluminosilicate (their basic structure is interlocking tetrahedra of SiO4 and AlO4) minerals that contain significant water and also significant exchangeable cations, which makes them absorbent materials. The name zeolite originates from the Greek words “zeo”, which means “to boil”, and “lithos”, which means “stone”. Zeolites were given their name because when you heat them, they generally release water in the form of steam. There are dozens of minerals in the zeolite group. You can view a list of zeolite minerals here. Zeolites often form through the interaction of volcanic rocks and ash with alkaline groundwater. Thus, you can often find spectacular and very beautiful zeolite crystals inside vesicles and vugs (often creating amygdules or crystal-filled cavities) in volcanic rocks such as basalt. Zeolites also crystallize in shallow marine basins.

My good friend and fellow geoblogger Dana Hunter has provided me with zeolite pictures galore. She took these pictures during one of her geology trips with Lockwood DeWitt. Thanks for the pictures, Dana and Lockwood!

More Natrolite. Mary's Peak, Oregon. Picture courtesy of Dana Hunter.
A zeolite amygdule (Lockwoods says consisting of mostly of the zeolite mineral stilbite) in a rock from Quartzville, Oregon. Picture courtesy of Dana Hunter.
A closer view of the zeolite amygdule. Picture courtesy of Dana Hunter.
More zeolite crystals from Quartzville, Oregon. Picture courtesy of Dana Hunter.
More zeolite crystals from Quartzville, Oregon. Picture courtesy of Dana Hunter.



***Thanks to several of my twitter followers for suggesting this week’s word and to Dana and Lockwood for all the pictures!***

Geology Word of the Week: Y is for Yellowstone National Park

Yellowstone #1. Fall 2005.

def. Yellowstone National Park:
A United States national park that is located in the states of Wyoming, Montana, and Idaho. Established in 1872, Yellowstone was the first national park to be founded and set an example for other national parks which were subsequently established all over the world. The park is the current location of the Yellowstone hotspot, which is responsible for large-scale volcanism in Oregon, Nevada, Idaho, and Wyoming. As a result of the hotspot, the park is full of geothermal features such as hotsprings and geysers… and thus is a treasured location for geologists to visit!

For this week’s geology word, I thought I would share some pictures from when I visited Yellowstone National Park as part of my undergraduate geology field camp back in 2005. I haven’t been back to Yellowstone since then, but my husband and I are hoping to visit sometime in 2013 as part of a Western USA roadtrip that we’re plotting.

Does anyone else have some Yellowstone pictures to share? Perhaps we can start a geomeme!

Yellowstone #2. Fall 2005.
Yellowstone #3. Fall 2005.
Yellowstone #4. Fall 2005.
Yellowstone #5. Fall 2005.
Yellowstone #6. Fall 2005.
Yellowstone #7. Fall 2005.

Geology Word of the Week: X is for Xiphactinus

A model of a live Xiphactinus. Photo courtesy of Ron Schott.

def. Xiphactinus:
1. A large (15-20 ft long), predatory fish that lived during the Late Cretaceous.
2. A prehistoric sea monster. Seriously. What an enormous and scary looking fish.
3. A really, really cool fossil. Maybe one day I can display one in the library of my evil geologist lair.

One of the most famous fossils of Xiphactinus is the “fish within a fish” fossil located at the Sternberg Museum of Natural History in Hays, Kansas. Ron Schott visited the museum several months ago and took many pictures as well as an incredible Gigapan of the “fish within a fish” fossil and some of the associated displays. Ron describes:

The centerpiece of the Sternberg Museum of Natural History in Hays, Kansas is the world renowned “Fish Within a Fish”. This remarkably complete sample from Gove County, Kansas is of a fourteen foot long Xiphactinus that had ingested an eight foot long Gillicus shortly before its demise in the Western Interior Seaway some 80 million years ago.

Here are some pictures that Ron took of Xiphactinus:

A fossil fish within a fossil fish. Very cool! Photo courtesy of Ron Schott.
Another view of the "fish within a fish" fossil. Photo courtesy of Ron Schott.
A closer view of the big fish's head. Look at those teeth! Photo courtesy of Ron Schott.
Scary fish teeth! Photo courtesy of Ron Schott.
A Xiphactinus skull. Photo courtesy of Ron Schott.
A reconstruction of the excavation of a Xiphactinus fossil. The model person gives a good sense of scale-- this is an enormous fish! Photo courtesy of Ron Schott.
Another view of the model excavation. Photo courtesy of Ron Schott.
Scary Xiphactinus mouth. Photo courtesy of Ron Schott.
Boo! Photo courtesy of Ron Schott.



***Thanks to Ron Schott for suggesting this week’s word and providing all the wonderful scary pictures.***
